HiFi Music Server
The NS6 series music server is a network and local playback device based on the CelHeart-G1 platform, featuring a high-performance X86 CPU and dual-stage linear ATX power supply. It supports CelPlayer, Roon Server, and UPnP Server.
It also supports mainstream streaming protocols including Roon Bridge, UPnP Render, AirPlay, and HQPlayer NAA — making it an ideal digital front end for HiFi systems.
Core Design
The CelHeart G1 revolutionizes dual-stage linear power design, overcoming limitations of traditional ATX power supplies. Paired with a high-performance CPU, it delivers smooth performance for professional HiFi use and an exceptional listening experience
Learn MoreThe NS6 adopts the CelCLK II PLL system with 1Hz locking technology, using a 50MHz OCXO as the VCO clock. Combined with an ideal SMA input interface, it achieves high-precision global clock synchronization
Learn MoreWith meticulous thermal planning, CelHeart-G1 arranges the high-heat CPU and NVMe SSD in a coplanar and coaxial layout, achieving excellent thermal performance across the device
Learn MoreOn the hardware side, it employs full PCIe I/O interfaces with independent power supplies and a unified clock. On the software side, it runs a real-time Linux kernel with full memory read/write and memory-mapped hardware I/O. The entire system delivers unparalleled ultra-low latency
Learn MoreDevices based on high-performance X86 CPUs have fundamentally different current and voltage requirements compared to traditional equipment. To address this, CelAudio has designed an entirely new digital power supply architecture optimized for these demands, delivering exceptional playback performance

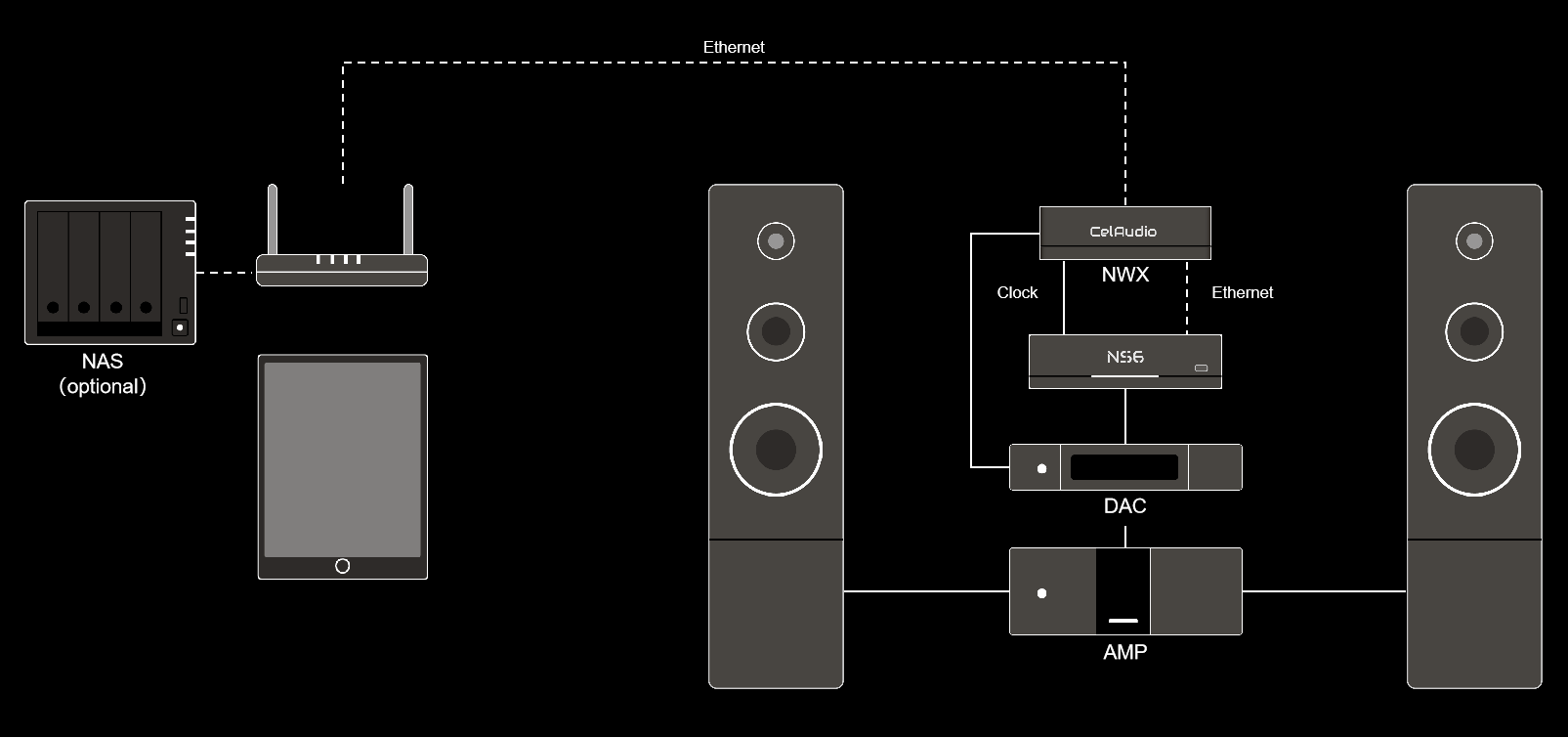

Network Topology
The USB Audio output module implements USB 2.0 output via PCIe, utilizing clock signals from the network clock module and a fully linear power supply — laying the foundation for high-quality USB audio playback. It also provides I2S/AES/SPDIF output interfaces implemented with XMOS and FPGA technology.
Since USB, XMOS, and FPGA all use clock signals output by the CelCLK II PLL system integrated on this module, along with a -85dB@1Hz, 1e-11@1s, 50MHz OCXO as the VCO clock, it differs from traditional interfaces. From PCIe to the final digital output, the entire USB Audio and digital output process remains in a clock-synchronized state and uses the high-quality clock signals from the network clock module. Therefore, the digital output signal is significantly better than traditional USB interfaces where only XMOS and FPGA use high-quality clocks. This module is a mandatory module for NS6U.
Specifications
| USB Output | USB Audio * 1 |
| Digital Output | i2s(HDMI) * 1, AES * 1, SPDIF(RCA) * 1, NS6U only |
| Clock Input | BNC * 1 (0.6V RMS, Sine/Square wave), SMA * 1 (3.3V RMS, LVCMOS Square wave) |
| Network | 10/100/1000Mbps RJ45 * 1, supports software-configurable rate and duplex mode |
| Internal Storage | NVMe 1TB, user available space approx. 870GB |
| External Storage | 2.5-inch SATA * 2, thickness ≤7mm |
| Power Input | 110/220V AC, fuse 5*20mm, 2.5A slow-blow |
| Dimensions (W*D*H) | 370mm * 210mm * 120mm |
| Weight | 11Kg |
| Model | Description |
| NS6 | Provides 10/100/1000M network interface and USB interface. |
| NS6U | Provides clock input interface, 10/100/1000M network interface, USB Audio interface, i2s/SPDIF/AES interfaces. |
