HiFi Clock Switch

The NWX HiFi Clock Switch employs an OCXO reference clock with -120dB@1Hz phase noise and 8e-13@1s Allan variance — providing an exceptional clock reference for the entire system.

At the switch level, the NWX employs a fully discrete-port dual-switch architecture using industrial and carrier-grade switching chips. Each RJ45 interface features an independently powered, independently clocked PHY chip — ensuring every port receives excellent power delivery and a high-precision clock supply. This enables the clock and switch dimensions to work in synergy, significantly elevating the playback quality of the entire network audio system.

Core Design

Core Design Philosophy

Industrial and Carrier-Grade Fully Discrete Dual-Switch Design

Fully discrete switching port plus dual-switch architecture design. RJ45 interfaces employ independently powered, independently clocked PHY chips, ensuring each port has excellent power supply and high-precision clock supply

Learn More

Clock Design

The NWX uses a dual-OCXO with PLL design, including a 10MHz OCXO clock as the internal/external reference clock, a 50MHz OCXO as the VCO clock, and the CelCLK II PLL system using 1Hz locking technology

Learn More

Main Power Supply System Designed for Digital Playback

Pure digital devices have fundamentally different current and voltage requirements compared to traditional HiFi equipment with analog output stages. To address this, CelAudio has designed an entirely new digital power supply architecture optimized for these demands, delivering exceptional playback performance

Network Topology

Dual OCXO Clock Module

The NWX series HiFi Clock Switch features a clock module with a 10MHz OCXO reference clock offering -120dB@1Hz phase noise and 8e-13@1s Allan variance. The internal switch clock source — the CelCLK II PLL system — employs a separate 50MHz OCXO with -85dB@1Hz phase noise and 1e-11@1s Allan variance as the VCO reference.

The 50MHz VCO clock and 10MHz reference clock work synergistically to achieve a 1+1>2 effect, enabling the entire system to attain exceptionally high clock precision — whether supplying clock signals externally or providing switch working clocks internally.

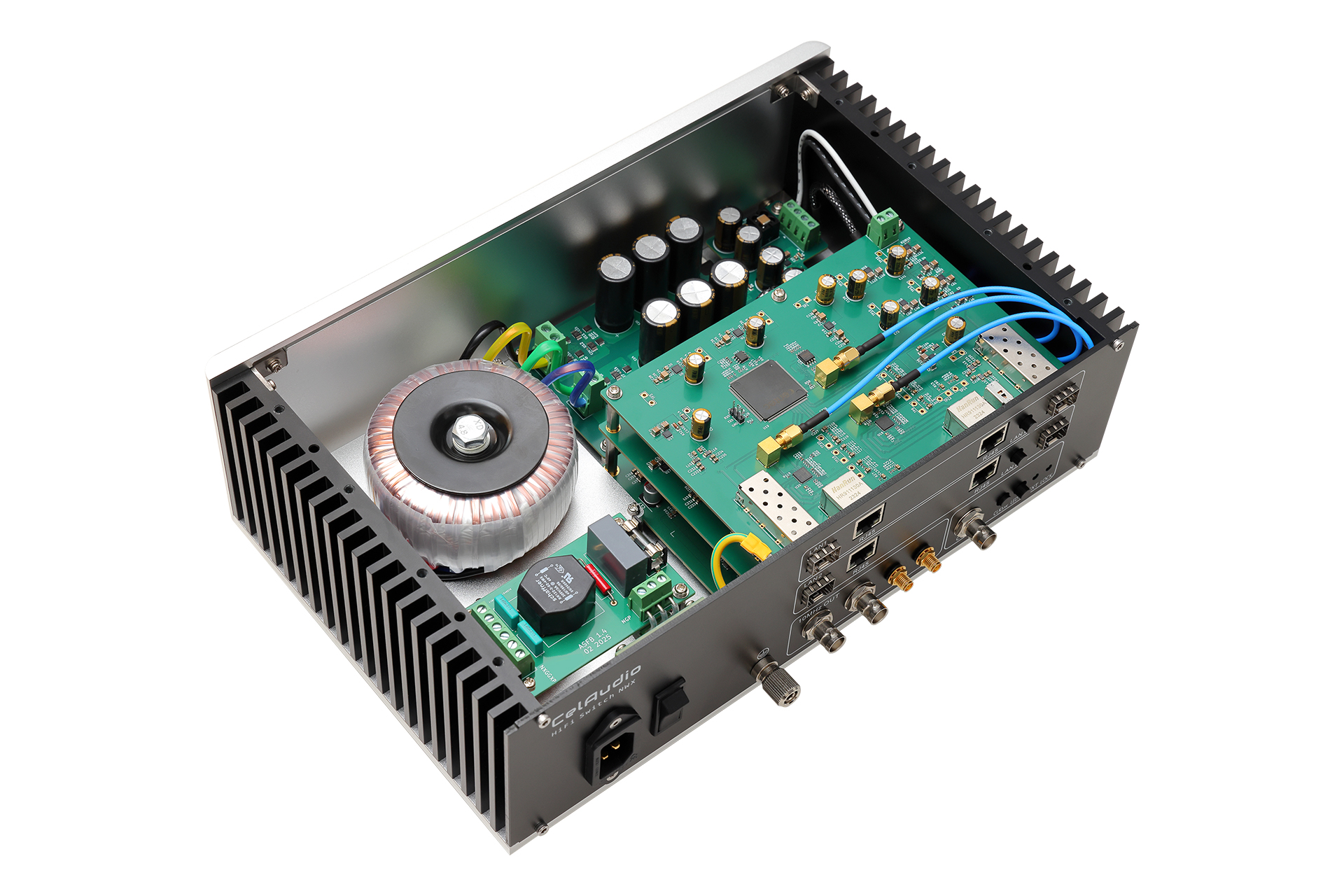

* The NWX contains only one clock module. The image shows a dual-OCXO clock display; the actual installation is a module with a clock shield

Dual Switch Module

The NWX features an internal dual-switch design. Each independent switch module uses industrial and carrier-grade switching chips. The RJ45 interfaces employ independently powered, independently clocked PHY chips — ensuring every port receives excellent power delivery and a high-precision clock supply, thereby significantly elevating the playback quality of the entire network audio system.

Specifications

Clock Output	BNC * 2, SMA * 2, 3.3V LVCMOS Square Wave
Clock Input	BNC * 1, 10MHz, 0.6V RMS, Sine/Square Wave
Network	Dual switch cards, each with RJ45 * 2, 10/100/1000M Auto-Negotiation
	SFP * 2, supports 1000M 1000Base-X / SGMII protocol
Power Input	110/220V AC, fuse 5*20mm, 2.5A slow-blow
Dimensions (WDH)	330mm * 231mm * 120mm
Weight	9Kg
